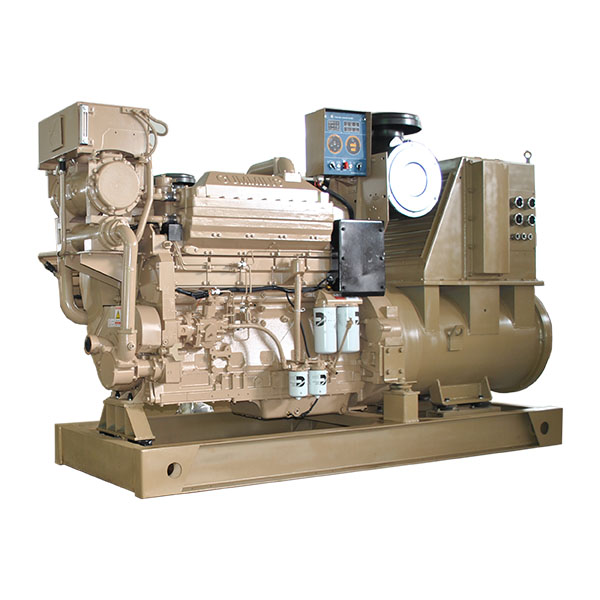

    CUMMINS Marine Generator
    Power range: 30kW-1000kW; 37kVA-1250kVA
    50Hz/400V, 60Hz/440V and other available
    Starter of electric, air or spring motor for optional
    Engine Monitor, Auto start controller or remote controller
    Driven by CUMMINS engine; Alternator of Marathon, Stamford, Siemens and Kangfu for optional
    EIAPP NOx TierⅡ cert issued by IMO
    CCS, ABS, BV, RINA, RS, GL certified

  • Previous: Weichai Marine Series
  • Next: Weichai Marine Genset
    • Genset model Output power Engine model Bore*Stroke CYL Displacement C/R Fuel consumption Dimension Weight
    KW KVA (mm) （L） L/h (mm) (Kg)
    CCFJ30JW 30 37.5 4BTA3.9-GM47 102×102 4 3.9 17.3:1 6.39 1650*850*1270 760
    CCFJ40JW 40 50 4BTA3.9-GM47 102×102 4 3.9 17.3:1 10.02 1740*850*1270 800
    CCFJ50JW 50 63 6BT5.9-GM83 102×120 6 5.9 17.3:1 12.47 1900*895*1300 1000
    CCFJ64JW 64 80 6BT5.9-GM83 102×120 6 5.9 17.3:1 15.96 1900*895*1300 1100
    CCFJ75JW 75 93.75 6BT5.9-GM83 102×120 6 5.9 17.3:1 18.71 1920*895*1300 1250
    CCFJ90JW 90 112.5 6BTA5.9-GM100 102×120 6 5.9 17.3:1 22.45 1995*895*1300 1300
    CCFJ100JW 100 125 6CT8.3–GM115 114×135 6 8.3 17.3:1 24.94 2110*860*1360 1650
    CCFJ120JW 120 150 6CTA8.3-GM155 114×135 6 8.3 17.3:1 29.93 2110*860*1360 1700
    CCFJ150JW 150 187.5 6LTAA8.9-GM200 114×145 6 8.9 16.6:1 31.8 2210*860*1400 1870
    CCFJ180JW 180 225 6LTAA8.9-GM200 114×145 6 8.9 16.6:1 38.16 2210*860*1400 1890
    CCFJ200JW 200 250 NTA855-DM 140×152 6 14 14.0:1 48.94 2760*995*1790 3100
    CCFJ200JW 200 250 N855-DM 140X152 6 14 14.0:1 48.94 2760*995*1790 3100
    CCFJ250JW 250 313 NTA855-DM 140×152 6 14 14.0:1 61.18 2760*995*1790 3180
    CCFJ250JW 250 313 N855-DM 140×152 6 14 14.0:1 61.18 2760*995*1790 3180
    CCFJ280JW 280 350 NTA855-DM 140×152 6 14 14.0:1 68.52 2998*995*1790 3250
    CCFJ280JW 280 350 N855-DM 140×152 6 14 14.0:1 68.52 2998*995*1790 3250
    CCFJ300JW 300 375 KTA19-DM 159×159 6 19 14.5:1 44.8 3170*1000*1905 3750
    CCFJ320JW 320 400 K19-DM 159×159 6 19 13.9:1 49.5 3170*1000*1905 3750
    CCFJ350JW 350 438 KTA19-DM 159×159 6 19 13.9:1 49.5 3170*1000*1905 3800
    CCFJ350JW 350 438 K19-DM 159×159 6 19 13.9:1 49.5 3170*1000*1905 3800
    CCFJ400JW 400 500 KTA19-DM 159×159 6 19 13.9:1 54.2 3170*1000*1905 3950
    CCFJ400JW 400 500 K19-DM 159×159 6 19 13.9:1 54.2 3170*1000*1905 3950
    CCFJ500JW 500 625 KT38-DM 159×159 12 38 15.5:1 78.5 3950*1500*2500 6200
    CCFJ600JW 600 750 KTA38-DM 159×159 12 38 14.5:1 87.5 4050*1400*268 6550
    CCFJ650JW 650 813 KTA38-DM 159×159 12 38 14.5:1 78.5 4050*1400*2680 6980
    CCFJ700JW 700 875 K38-DM 159×159 12 38 13.9:1 103.7 4100*1500*2500 6500
    CCFJ800JW 800 1000 KTA38-DM 159×159 12 38 13.9:1 109.4 4100*1500*2500 7000
    CCFJ800JW 800 1000 K38-DM 159×159 12 38 13.9:1 109.4 4100*1500*2500 7000
    CCFJ1000JW 1000 1250 K50-DM 159×159 12 38 15.0:1 141.7 4250*1500*2500 7500
    Genset model Output power Engine model Bore*Stroke CYL Displacement C/R Fuel consumption Dimension Weight
    KW KVA (mm) （L） L/h (mm) (Kg)
    CCFJ40JW 40 50 4BTA3.9-GM65 102×102 4 3.9 17.3:1 10.02 1740*850*1270 800
    CCFJ50JW 50 62.5 4BTA3.9-GM65 102×102 4 3.9 17.3:1 12.53 1740*850*1270 850
    CCFJ64JW 64 80 6BT5.9-GM100 102×120 6 5.9 17.3:1 15.96 1905*895*1300 1100
    CCFJ75JW 75 93.75 6BT5.9-GM100 102×120 6 5.9 17.3:1 18.68 1920*895*1300 1250
    CCFJ90JW 90 112.5 6BTA5.9-GM120 102×120 6 5.9 17.3:1 22.41 1995*895*1300 1300
    CCFJ100JW 100 125 6BTA5.9-GM120 102×120 6 5.9 17.3:1 24.94 2110*895*1360 1650
    CCFJ120JW 120 150 6CTA8.3-GM175 114×135 6 8.3 17.3:1 29.93 2110*860*1360 1700
    CCFJ150JW 150 187.5 6CTA8.3-GM175 114×135 6 8.3 17.3:1 37.41 2685*860*1790 1750
    CCFJ250JW 250 312.5 NTA855-DM 140×152 6 14 14.0:1 61.18 2760*995*1790 3180
    CCFJ250JW 250 312.5 N855-DM 140×152 6 14 14.0:1 61.18 2760*995*1790 3180
    CCFJ280JW 280 350 NTA855-DM 140×152 6 14 14.0:1 66.07 2850*995*1790 3250
    CCFJ280JW 280 350 N855-DM 140×152 6 14 14.0:1 66.07 2850*995*1790 3250
    CCFJ350JW 350 437.5 KTA19-DM 159×159 6 19 13.9:1 84.82 3170*1000*1905 3800
    CCFJ380JW 380 475 K19-DM 159×159 6 19 13.9:1 95 3170*1000*1905 3850
    CCFJ400JW 400 500 KTA19-DM 159×159 6 19 13.9:1 96.94 3170*1000*1905 3950
    CCFJ400JW 400 500 K19-DM 159×159 6 19 13.9:1 96.94 3170*1000*1905 3950
    CCFJ450JW 450 562.5 KTA19-DM 159×159 6 19 13.9:1 109.06 3950*1500*2500 4000
    CCFJ600JW 600 625 KTA38-DM 159×159 12 38 13.9:1 146.11 4100*1500*2500 6300
    CCFJ700JW 700 875 KTA38-DM 159×159 12 38 14.0:1 170.47 4100*1500*2500 6400
    CCFJ720JW 720 900 KTA38-DM 159×159 12 38 14.0:1 180 4100*1500*2500 6400
    CCFJ720JW 720 900 K38-DM 159×159 12 38 14.0:1 180 4100*1500*2500 6400
    CCFJ800JW 800 1000 KTA38-DM 159×159 12 38 14.5:1 197.82 4100*1500*2500 7100
    CCFJ800JW 800 1000 K38-DM 159×159 12 38 14.5:1 197.82 4100*1500*2500 7100
    CCFJ900JW 900 1125 KTA38-DM 159×159 12 38 14.5:1 219.18 4250*1500*2500 7500
    CCFJ1150JW 1150 1438 K50-DM 159×159 12 50 13.9:1 287.5 4250*1500*2500 7500
