Characteriestics

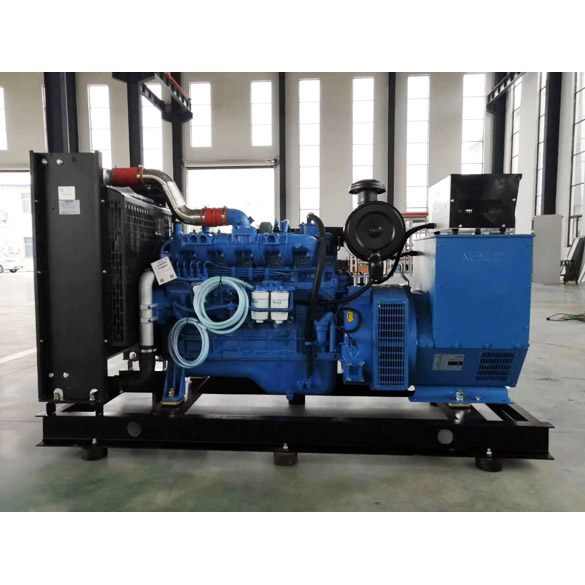

FENGGFA YUCHAI series generator sets adopt "yuchai" brand engine og yuchai machine co., ltd. yuchai grup was founded in 1951, and now has 33 wholly -owned, holding, joint-stock subsidiary companies, and 16,0000 employees, and its total assests is 134 billion yuan.
Overrall the crankshaft forging steel, high quality alloy cast iron the cylinder head, the blank are imported, small volume, light weight, low noise, small vibration, high reliability, overhaul period more thank 12,000hours .
High-pressure pump adopt P type, spray nozzles USES p-type tsui, consumption indicators with power shift far better than domestic products, add valve seal, using yuchai proprietary techonlogy and valve pision seal oil, lubricating oil consumption than sealing techonlogy with low power shift if domestic products.
Model | Prime Power | Standby Power(KVA/KW) | Engine Model | Dimension(MM) | Weight(KG) | ||
(KVA/KW) | |||||||
FF45Y5 | 45 | 36 | 50 | 40 | YC4D60-D21 | 1810×780×1120 | 740 |
FF63Y5 | 63 | 50 | 69 | 55 | YC4D85Z-D20 | 1900×750×1120 | 780 |
FF68Y5 | 68 | 55 | 75 | 60 | YC4D90Z-D21 | 1900×750×1120 | 800 |
FF80Y5 | 80 | 64 | 88 | 70 | YC4A100Z-D20 | 1950×770×1230 | 1040 |
FF102Y5 | 102 | 82 | 113 | 90 | YC6B135Z-D20 | 2150×850×1250 | 1180 |
FF117Y5 | 117 | 94 | 129 | 103 | YC6B155L-D21 | 2320×900×1280 | 1250 |
FF136Y5 | 136 | 109 | 150 | 120 | YC6B180L-D20 | 2430×900×1280 | 1320 |
FF157Y5 | 157 | 125 | 173 | 138 | YC6B205L-D20 | 2430×900×1280 | 1350 |
FF176Y5 | 176 | 141 | 194 | 155 | YC6A230L-D20 | 2460×960×1400 | 1460 |
FF188Y5 | 188 | 150 | 206 | 165 | YC6A245L-D21 | 2490×960×1400 | 1500 |
FF267Y5 | 267 | 214 | 294 | 235 | YC6MK350L-D20 | 2970×1125×1630 | 2060 |
FF319Y5 | 319 | 255 | 351 | 281 | YC6MK420L-D20 | 2970×1125×1630 | 2240 |
FF365Y5 | 365 | 292 | 401 | 321 | YC6MJ480L-D20 | 3060×1125×1650 | 2350 |
FF418Y5 | 418 | 335 | 460 | 368 | YC6T550L-D21 | 3450×1240×1868 | 3380 |
FF456Y5 | 456 | 365 | 501 | 401 | YC6T600L-D22 | 3520×1240×1868 | 3490 |
FF501Y5 | 501 | 401 | 551 | 441 | YC6T660L-D20 | 3520×1240×1868 | 3620 |
FF591Y5 | 591 | 473 | 650 | 520 | YC6TD780L-D20 | 3550×1260×1820 | 4050 |
FF636Y5 | 636 | 509 | 700 | 560 | YC6TD840L-D20 | 3550×1260×1820 | 4190 |
FF773Y5 | 773 | 618 | 850 | 680 | YC6C1020L-D20 | 4000×1500×2100 | 7100 |
FF813Y5 | 813 | 650 | 894 | 715 | YC6C1070L-D20 | 4000×1500×2100 | 7200 |
Model | Prime Power | Standby Power(KVA/KW) | Engine Model | Deminsions(MM) | Weight(KG) | ||
(KVA/KW) | |||||||
FF50Y6 | 50 | 40 | 55 | 44 | YC4D65-D20 | 1790×770×1140 | 650 |
FF63Y6 | 63 | 50 | 69 | 55 | YC4D80Z-D20 | 1830×770×1140 | 750 |
FF75Y6 | 75 | 60 | 83 | 66 | YC4D100Z-D20 | 1920×770×1140 | 820 |
FF100Y | 100 | 80 | 110 | 88 | YC6B130Z-D20 | 2200×850×1280 | 1140 |
FF121Y6 | 121 | 97 | 134 | 107 | YC6B160Z-D20 | 2160×850×1280 | 1170 |
FF150Y6 | 150 | 120 | 165 | 132 | YC6A200Z-D20 | 2440×960×1380 | 1420 |
FF159Y6 | 159 | 127 | 175 | 140 | YC6B210L-D20 | 2440×900×1350 | 1330 |
FF188Y6 | 188 | 150 | 206 | 165 | YC6A245L-D20 | 2530×960×1380 | 1500 |
FF175Y6 | 200 | 160 | 221 | 177 | YC6MK265Z-D20 | 2780×1125×1630 | 1780 |
FF273Y6 | 273 | 218 | 300 | 240 | YC6MK360L-D20 | 2870×1125×1630 | 1960 |
FF319Y6 | 319 | 255 | 351 | 281 | YC6MK420L-D21 | 2970×1125×1630 | 2180 |
FF365Y6 | 365 | 292 | 400 | 320 | YC6MJ480L-D21 | 2970×1125×1630 | 2350 |
FF501Y6 | 501 | 401 | 551 | 441 | YC6T660L-D21 | 3520×1240×1868 | 3500 |
